Side Mount

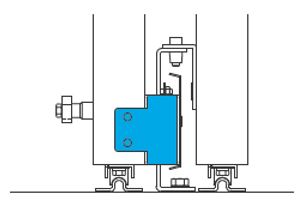

Side mounting:
In this case, the pulley box is installed on the side of the gate, which allows eliminating the constraints of wheel diameter and T gate profile dimensions. This configuration does not allow installing more than two gates.

This kit consists of:
  • 2 x galvanized adjustable pulley box for cable (282.411/282.511)
  • 10 m of 4 mm steel cable
  • Plates for connection (between the two gates and ground fixing)
  • 30 mm rollers between the two gates (3000 mm each)
  • Cable covers for side mounting (1200 mm  in length each) 281.21
  • Guide track for 30 mm rollers between the two gates (3000 mm each in length) 283.303
  • Caps for guide track 283.013
Product number: 280.S30
Price: POA (excl. GST)

FLEXIBLE APPLICATIONS IN COMPACT SPACES, AND MORE!



Click below to watch the tutorial video created to facilitate installation operations...


Telescopic Tutorial

MADE IN ITALY
